Product name: CEILING ANCHOR
Hits: 2209 Category: CEILING ANCHOR Model:
Product details
1.QUICK AND EASY APPLICATION,MADE BY CARBON STEEL AND PIN.

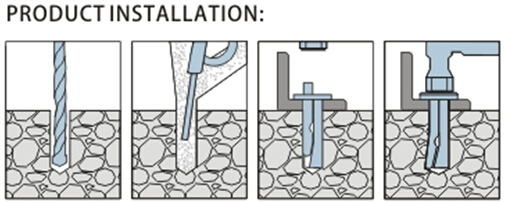

2.HAMMER DRIVING, BY HAMMERING THE PIN IT WILL CREAT FULL EXPANSION OF THE ANCHOR INTO CONCRETE.
3.SUITABLE CEILING SUSPENSION LIGHT DUTY APPLICATION.
| CEILING ANCHOR ( PLATING THICKNESS 3-5 um ) |
CODE NO | SIZE | DIAMETER ANCHOR Фmm | ANCHOR LENGHT mm | ANCHOR WEIGHT KGS/1000PCS | PACKING BOX/CTN |
| CEL-640 | M6X40 | 6 | 40 | 10.5 | 200/2000 |
| CEL-665 | M6X65 | 6 | 65 | 16.1 | 100/1000 |
| PULL OUT LOAD SPECIFICATION |
SIZE mm | DIAMETER ANCHOR Ф mm | SAFETY PULL OUT LOAD KGS |
| M6 | 6 | 105 |
| INSTALLATION OF PULL OUT LOAD |
| 1. 5 pcs Anchor for Testing. 2. Drill a hole. 3. Measure hole depth. 4. Put Anchor in the hole by Hammering. 5. Install Pull out Load Machine. 6. Start to Pull out the Anchor. 7. See the Pull out Load Strength when the concrete is Broken. |
| FINAL TEST REPORT OF PULL OUT LOAD |
| SIZE mm | MATERIAL SIZE Ф mm | PULL OUT LOAD KGS RESULT | |
| M6 | 5.77 | 120 | |
